LVP603 / LVP603s LED Display Accessories , LED Video Processor VD 3 - Composite

Name: LVP603 LVP603s LED Display Accessories LED Video Processor VD 3 Composite
Brand: SRYLED
Price: 1000 USD

LVP603 / LVP603s LED Display Accessories , LED Video Processor VD 3 - Composite Manufactures

Brand Name : SRYLED

Model Number : LVP603 / LVP603S

Certification : CE, RoHS,EMC

Place of Origin : Shenzhen, China

MOQ : 1pcs

Price : 1000-1200USD/pcs

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000pcs/month

Delivery Time : 3 days after receiving payment

Packaging Details : Packed by pearl wool or bubble bag, then put in carton

Name : Led Video Processor

Support color : Full color

Application : Live show, concert, news conference

Input source : DVI, Video, SDI, VGA, HDMI

Contact Now

LVP603 / LVP603s LED Display Accessories , LED Video Processor VD 3 - Composite

Feature

1. 10+ Bit Faroudja® DCDI Cinema Processing
2. New Faroudja® Real Color®
3. Advanced 4x4 Pixels Interpolation Scaling Algorithm

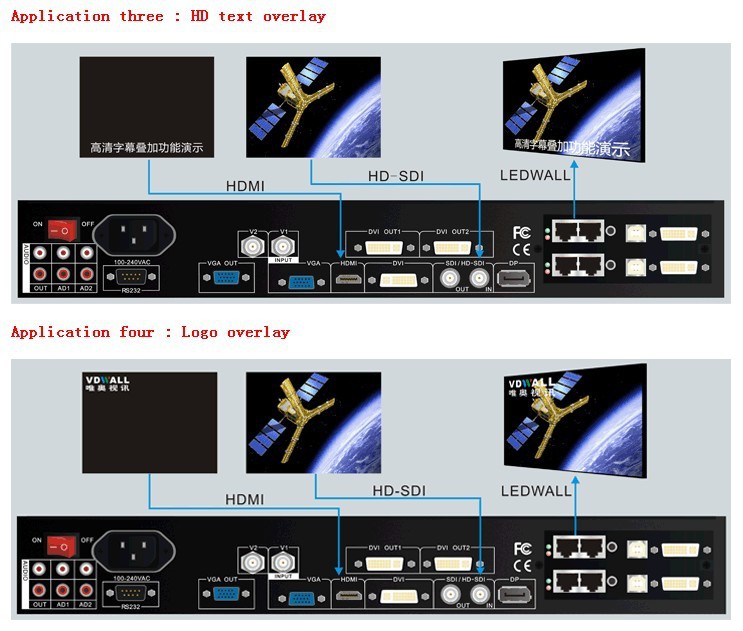

4. HD Text, Flash, Graphics & Logo Overlay

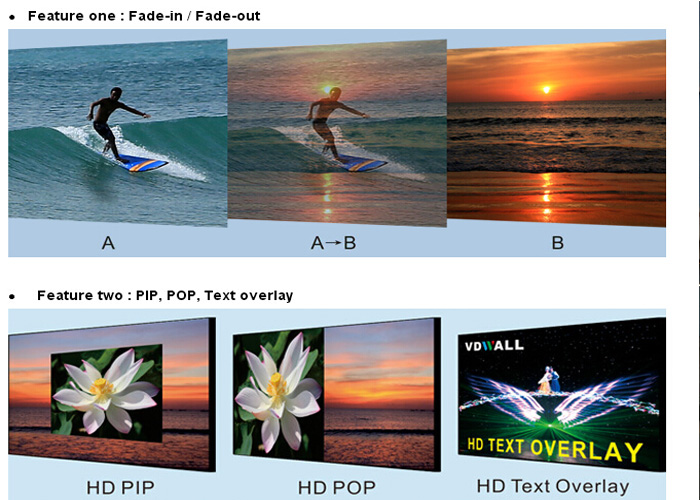

5. Seamless Switching,Fade-in / Fade-out

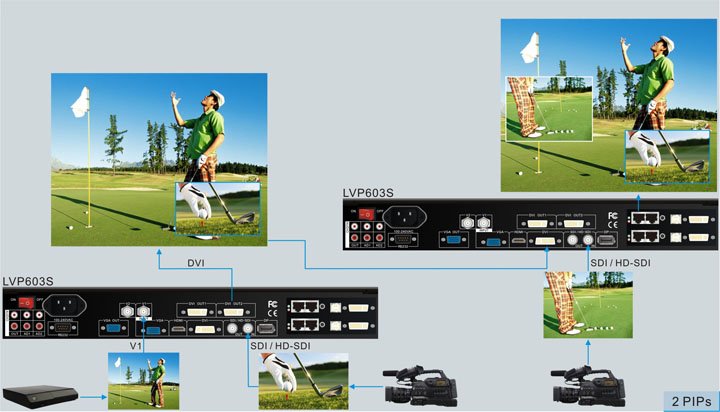

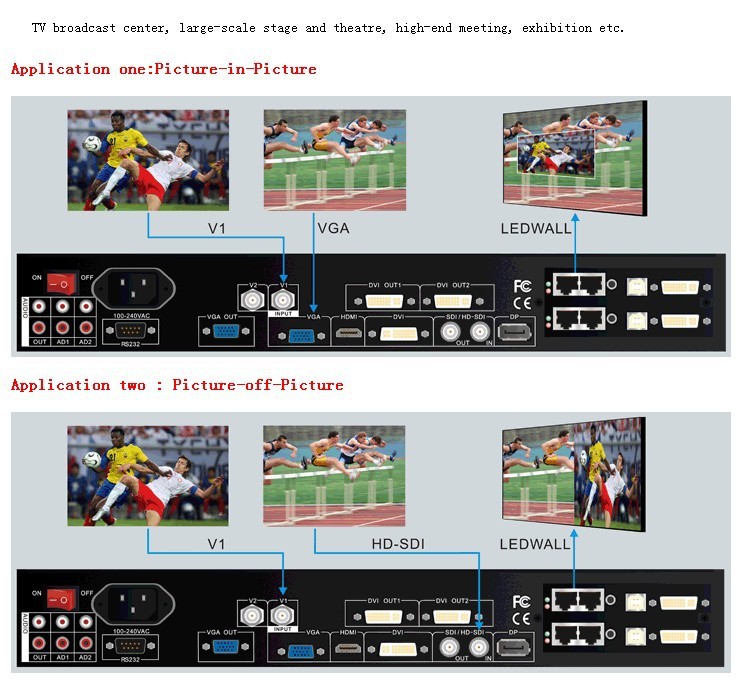

6. Unrestricted HD Picture-In-Picture ( PIP ) & Picture-Off-Picture( POP )
7. Independent H & V Scaling Ratios
8. HDMI 1.3a with HDCP, HD 1080p input
9. SDI / HD-SDI / 3G-SDI ( 1080p ) Input
10. 1920 x 1080p or 1600 x 1200 output for single machine
11. Multi-machine in parallel, 6 x 6 in parallel can connect 11520 x 6480 LED screen
12. Fast 64-level output brightness adjustment
13. Easy setup and adjustment through keys on the panel
14. Press keys on frontal panel to directly select 7-channel input signal source, including:
1 x SDI / HD-SDI 1 x HDMI( with HDCP ) 1 x DVI
1 x VGA 1 x DP( DisplayPort ) 2 x CVBS
15. 2 channels can be configured to connect external stereo audio, plus DP, HDMI and SDI audio,
there are 5-channel audio for synchronous switch
16. 2 LED Transmission Cards Built-in ability (The processor does not include the Transmission card )

LVP603 / LVP603s LED Display Accessories , LED Video Processor VD 3 - Composite

Specification

Inputs
Nums / Type	2×Composite video 1×D/P( Display Port ) 1×VGA ( RGBHV ) 1×DVI 1×HDMI 1×SDI / HD-SDI
Video system	PAL / NTSC
Composite Video Scope / Impedance	1V (p_p) / 75Ω
VGA Format	PC(VESA)	≤1600x1200 @60HZ
VGA Scope / Impedance	R,G,B = 0.7 V (p_p) / 75Ω
DVI Format	SD / HD(CEA-861)		≤1920x1080P @60HZ
	PC(VESA)		≤1600x1200 @60HZ
HDMI Format ( HDCP )	SD / HD(CEA-861)		≤1920x1080P @60HZ
	PC(VESA)		≤1600x1200 @60HZ
DP Format	SD / HD(CEA-861)		≤1920x1080P @60HZ
	PC(VESA)		≤1600x1200 @60HZ
SDI Format	SDI-SMPTE 259M-C			576i @50HZ 480i @60HZ
HD-SDI / 3G-SDI Format	HDSDI-SMPTE 292M SMPTE 274M/296M SMPTE 424M/425M			≤1080P @50Hz/60Hz
Input Connectors	VGA:15pin D_Sub ( Female ) DVI:24+1 DVI_D Composite video:BNC DP: Display Port SDI / HD-SDI: BNC
Outputs
Nums / Type	1×VGA ( RGBHV ) 2×DVI
VGA / DVI Format	1024×768@60Hz/75Hz 1280×1024@60Hz/75Hz 1600×1200@60Hz 1920×1080p@50Hz/60Hz
VGA Scope / Impedance	R,G,B = 0.7 V (p_p) / 75Ω
Output Connectors	VGA:15pin D_Sub ( female ) DVI OUT1:24+5 DVI_I DVI OUT2:24+1 DVI_D
Others
Control	Panel Button
Power	100-240VAC 60W 50 / 60Hz
Operating Temp	5-40 ℃
Humidity	15-85%
Size	135 mm (high) ×350mm (wide) ×510mm (length)
Weight	3.9 Kg

Application

Rental performance,TV broadcast center, large-scale stage and theatre, high-end meeting, exhibition etc.

Product Images

LVP603 / LVP603s LED Display Accessories , LED Video Processor VD 3 - Composite
